COINFINITY - 1x4 Honeycomb styled magnetic base

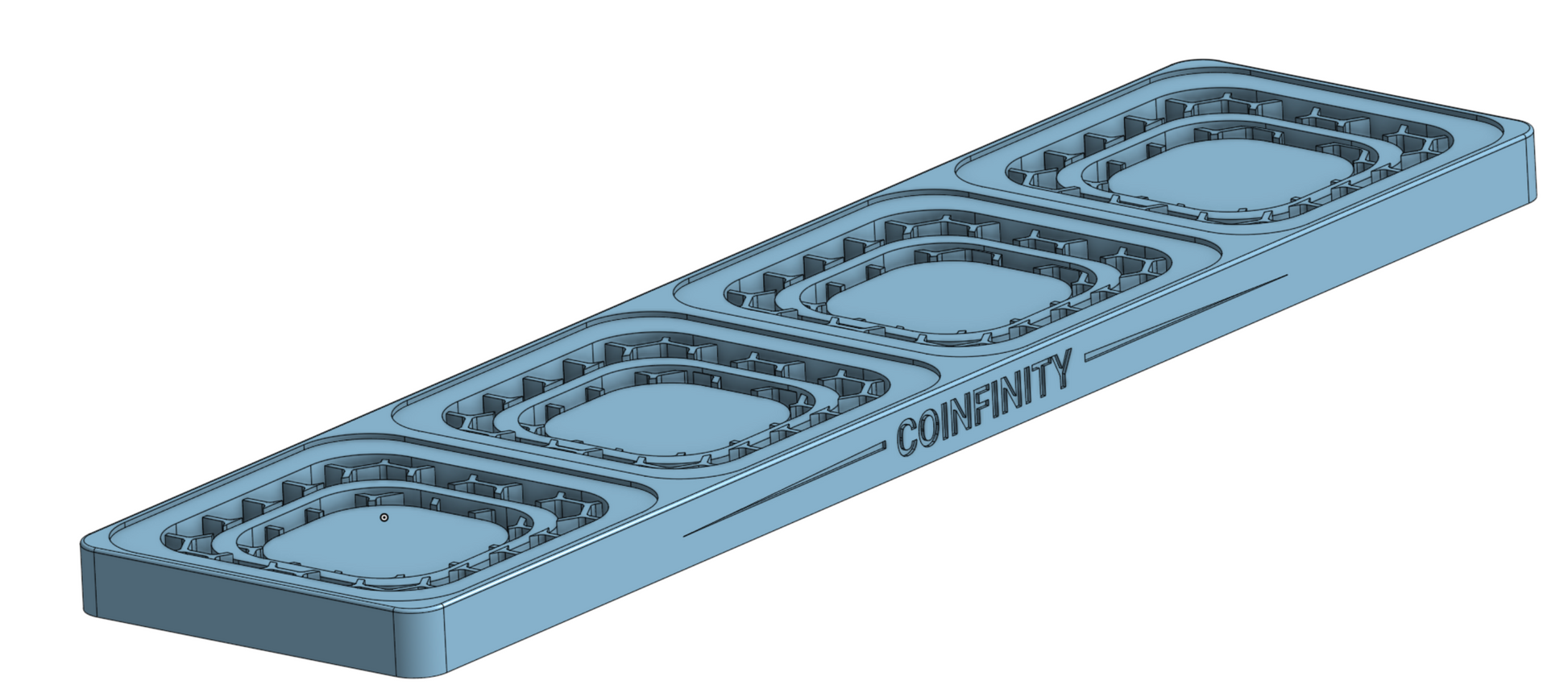

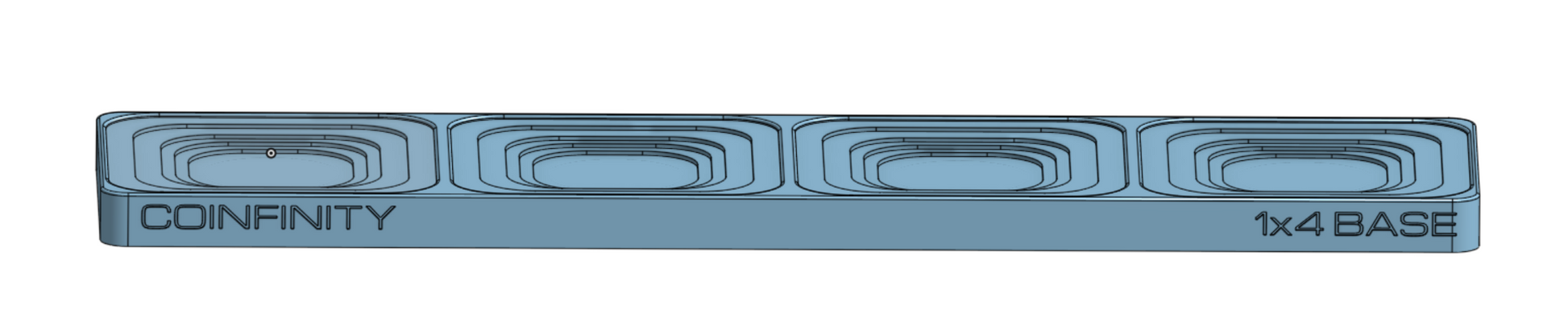

📏 Coinfinity 1×4 Magnetic Honeycomb Base – Overview

Purpose
A stable, magnetically mounted platform that holds 4 stackers in a single row, perfect for linear organization of your collection.

🛠 Design Features

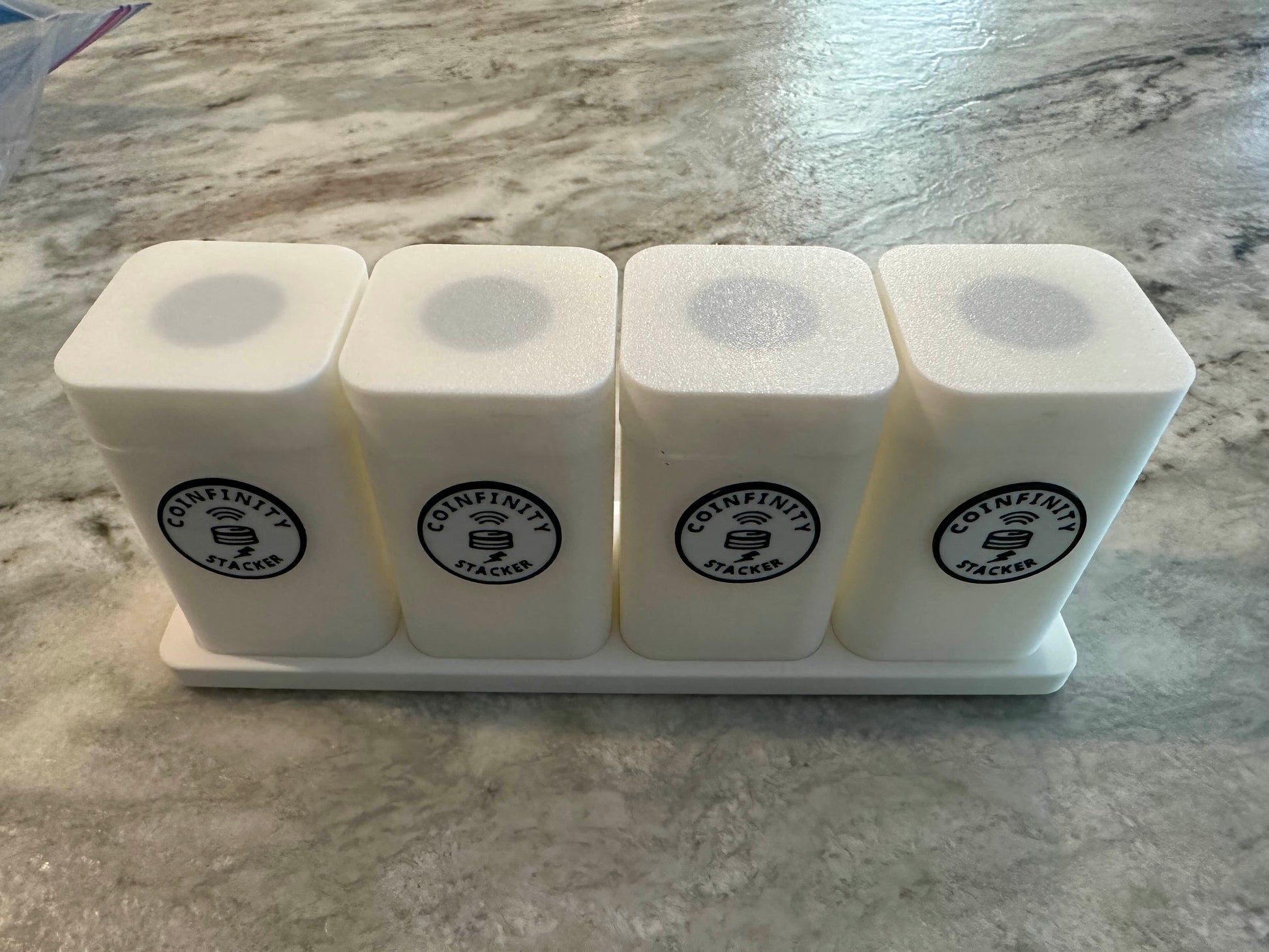

✅ Holds: 4 stackers (any size) in one row

✅ Magnetic interlock: Built-in 1" × 4 mm magnet wells for secure stacking

✅ Recessed cups: Keep stackers stable and aligned

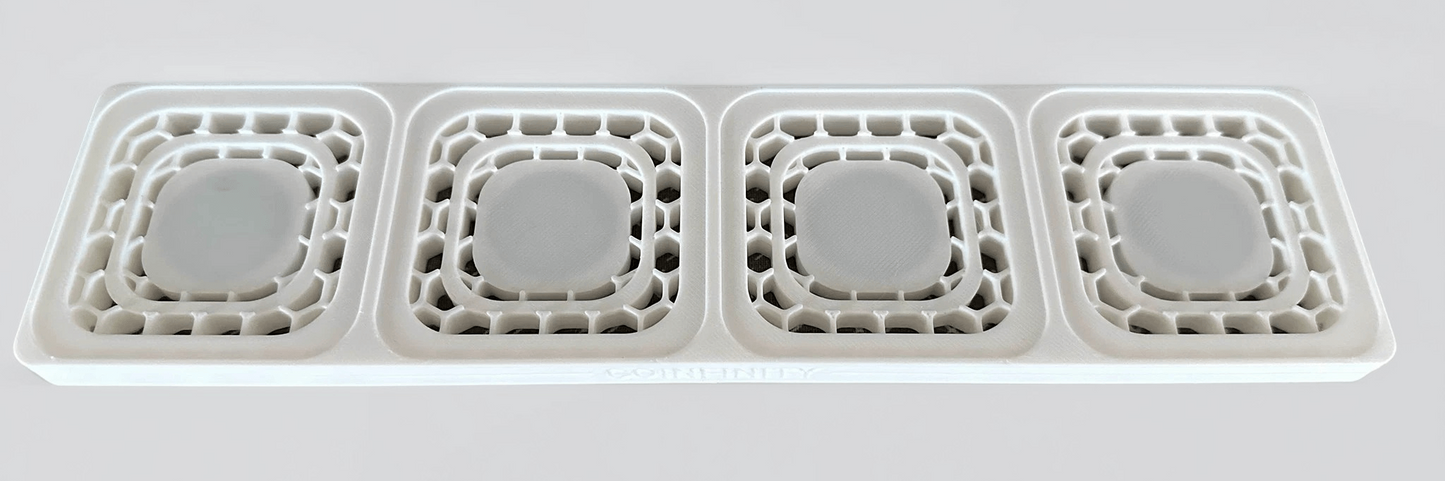

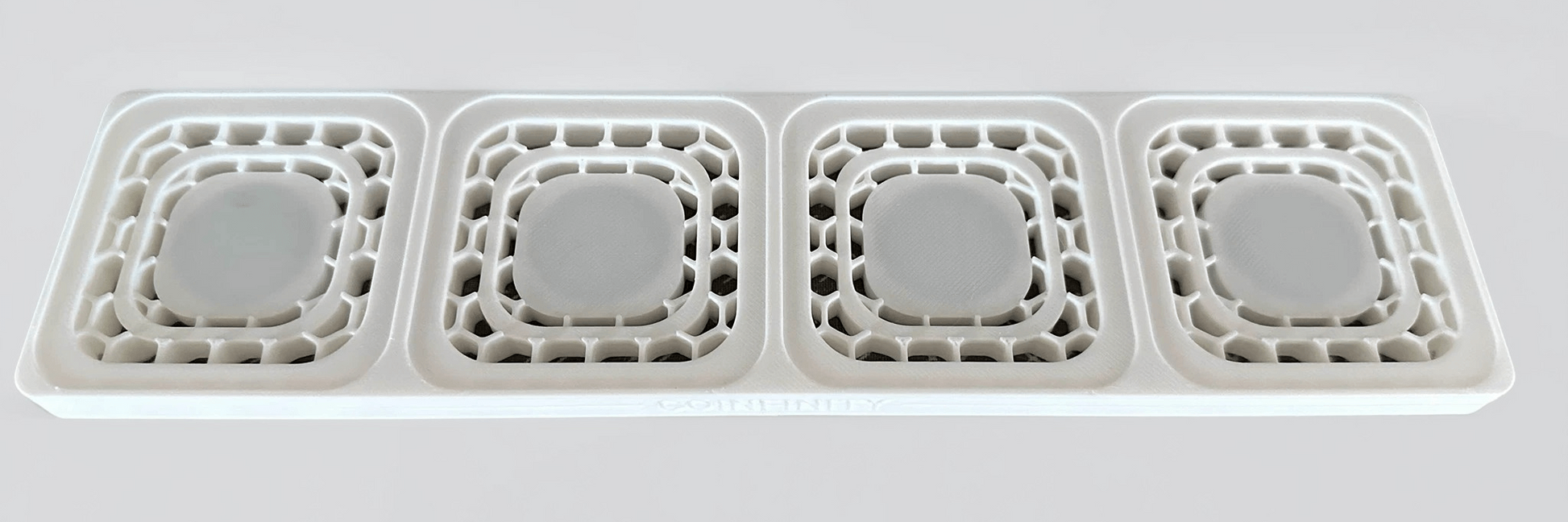

✅ Honeycomb structure: Reduces material usage while maintaining strength

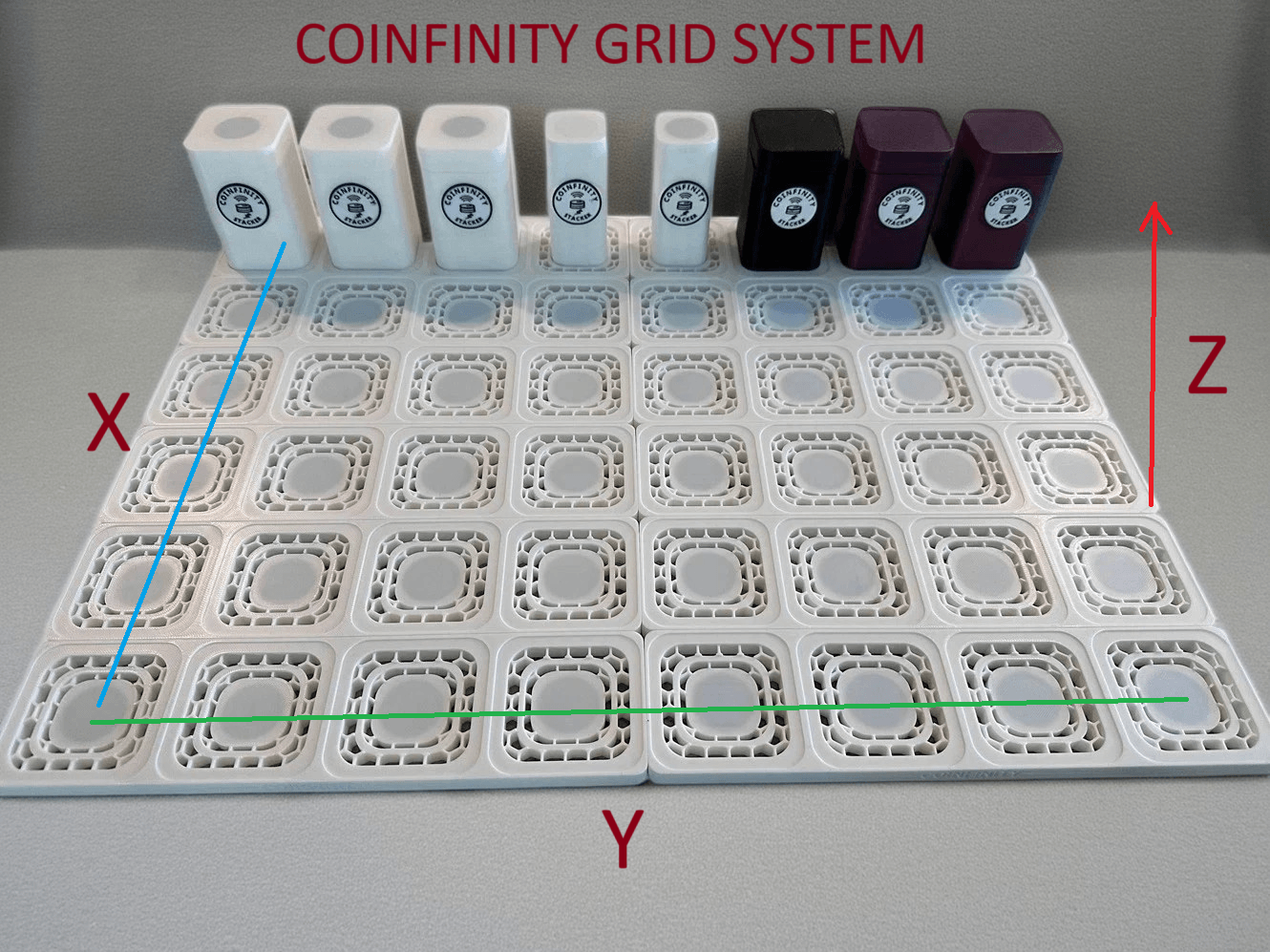

✅ Gridfinity-compatible footprint

✅ Expandable: Multiple bases can be connected for larger layouts

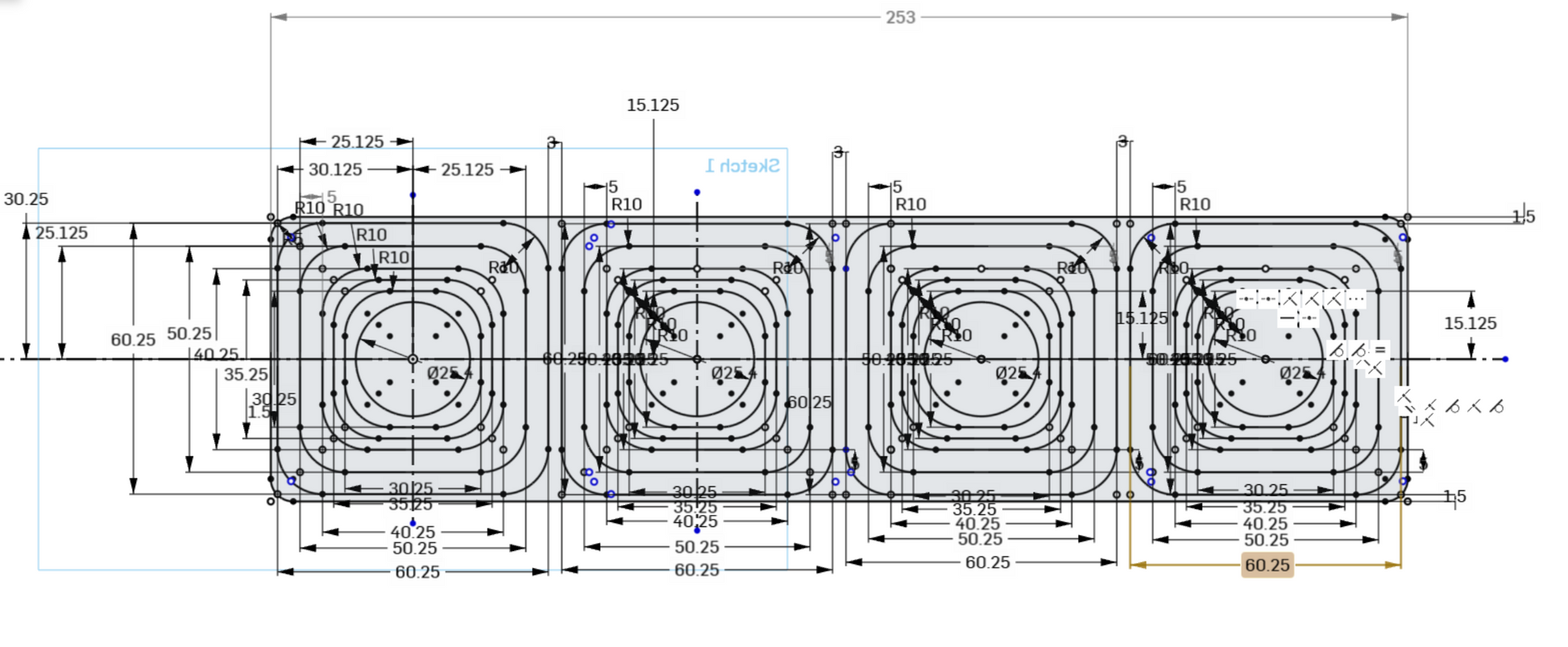

📐 Dimensions & Specs

✅ Magnet size: 25 mm (1") diameter × 4 mm thick

✅ Magnet strength: ~2800 Gauss, Grade 5 Ceramic

✅ Layer height (print): 0.2 mm

✅ Infill: 20% (30% for added strength)

✅ Supports: Required for feet only

✅ Print orientation: Flat side down, feet dimples facing up

⚙ Assembly Instructions

1. 3D print the base (see 3D Printing Guide)
2. Insert magnets into wells during print pause
3. Follow polarity indicators: keep polarity consistent for all bases

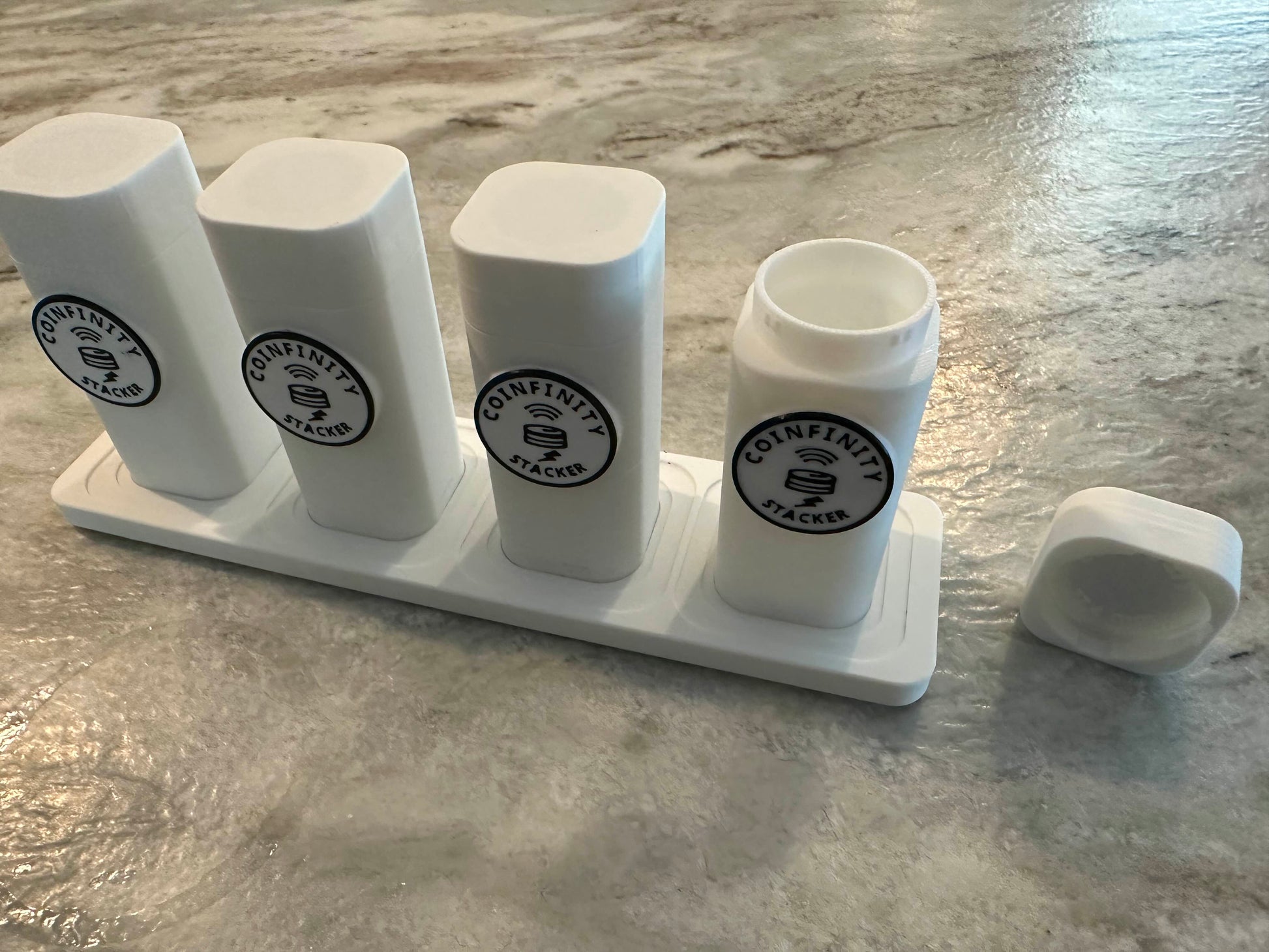

4. Press stackers into recessed slots

📦 Best Uses

✅ Medium-sized collections

✅ Grouping coins by metal type, denomination, or series
